Modularity

• Modular design, wide transmission range and fine distribution.

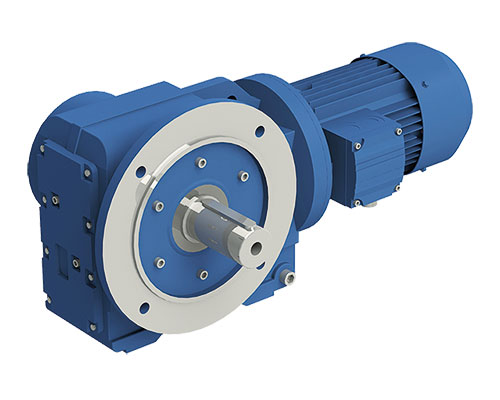

• Foot, flange or shaft mounted.

Versatility

• 12 basic sizes, 37 – 47 – 57 – 67 – 77 – 87 – 97 -107 – 127 – 157 – 167 – 189.
• 3 input versions, with motor, with input shaft and with input flange.
• Wide range of different mounting positions.

Performances

• Reduction ratio range from 5.31 to 187.
• Output torque up to 62,800Nm.
• Motor power from 0.12kW to 200kW.

Reliability

• Sturdy cast iron housing for heavy duty applications.
• The gear is ground by high-precision gear grinding machine with stable transmission and low noise.
• High quality sealing provides good protection performance, can work continuously in harsh environments.
• Modularly combined with R helical gear reducer, the ratio can be widely extended.

Optional Accessories

• Output flanges
• Hollow shaft
• Shrink disk
• Torque arm

Catalogue

Regarding the catalogue, please check the  Downloads page.
