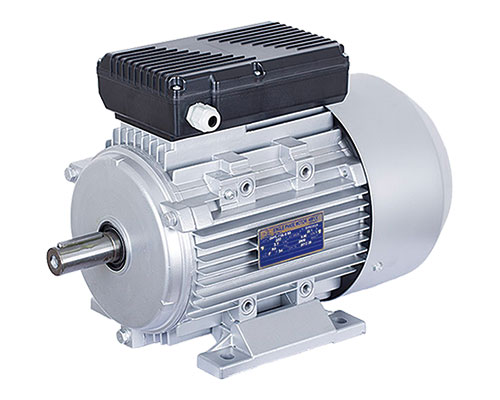

MC / MY / ML series

Single Phase Motors

ML / MC / MY series motors with aluminum frames comply with IEC standard, single-phase, asynchronous, totally enclosed and fan cooled (TEFC), simple construction, with excellent performance and high efficiency.

Description

Three kinds of single-phase motors can be provided:

ML series motors with starting & running-capacitors have strong starting torque, high power factor and reliability in running, suitable for machines and equipments which need full load start.

MC series motors with starting-capacitor have 2-3 times staring torque as rated torque and great overload performance, widely be used in the equipment which need bigger starting torque, such as small machine tools, compression pumps, refrigerators, etc.

MY series motors with running-capacitor are running steady, fitting for household appliances, air compressors, pumps, blowers, etc.

Power range

  • 0.18 – 3.7kW

Frame sizes

  • IEC 71 – 100

Frame material

  • Aluminum

Speed

  • 2, 4 pole

Voltage & frequency

  • 50Hz, 60Hz
  • 220V, 230V, 240V

Mounting options

  • IM B3, IM B5, IMB35, IMB14, IMB34

Degree of protection

  • IP54

Insulation class

  • F

Cooling

  • IC411

Duty

  • S1 duty

Catalogue

Regarding the catalogue, please check the  Downloads page.
